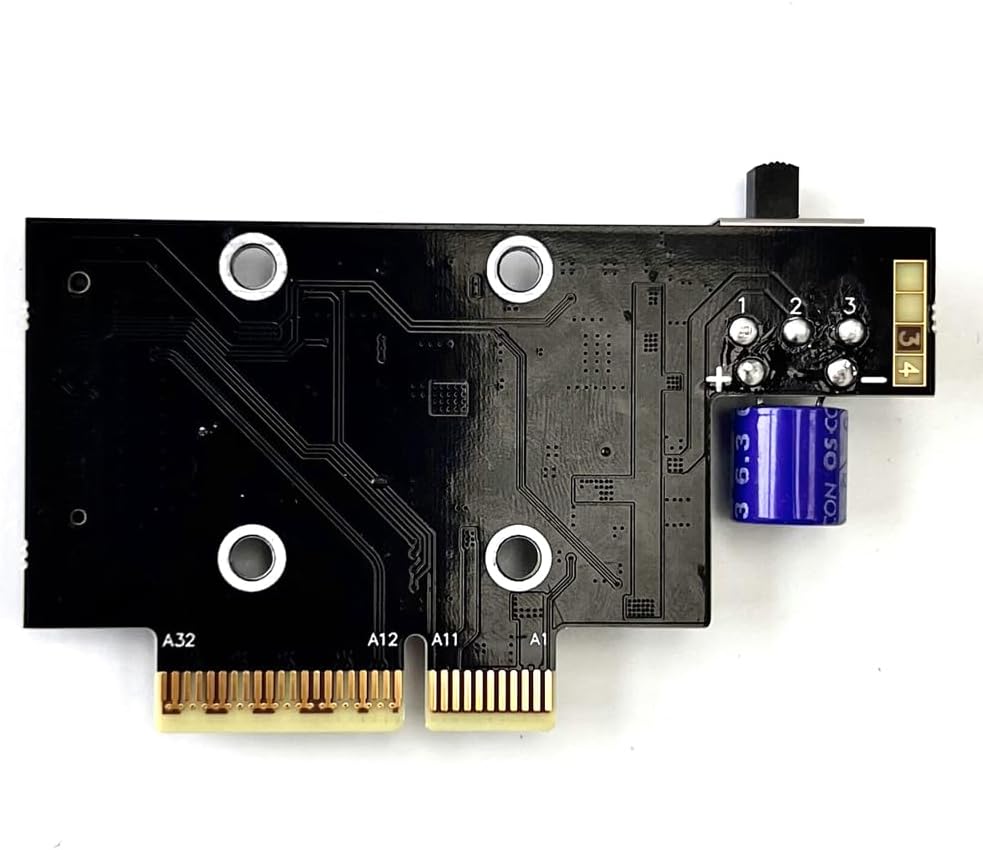

JMT ADT PCIe 5.0 x4 to M.2/M.3 NVME SSD Adapter Card 128G/bps with Bracket Compatible with M.2 NVMe 2230 2242 2260 2280 22110 SSD (R24B)

JMT ADT PCIe 5.0 x4 to M.2/M.3 NVME SSD Adapter Card 128G/bps with Bracket Compatible with M.2 NVMe 2230 2242 2260 2280 22110 SSD Product Advantage: Product Name: PCIe 5.0 x4 to M.2 NVME Adapter Card 1. Speed Bandwidth: Support PCIe 5.0 X4, Compatible with Gen3/Gen4/Gen5 2. Unique design bracket base plate 3. Gold-plated gold finger, gold thickness up to 10U, in line with IPC level 1 international standards. 4. High-frequency, low resistance, high-temperature resistant, anti-oxidation PCB board, no deformation of the color of yellow crystal translucent, not white, not black. R24A lights: D1 light: Read-write light, will blink during the read-write process; D2 light: Fault light, under normal circumstances for the off state; D3 light: RESET light, under normal circumstances will only blink once in the power-on state; D4 light: REQCLK# light, under normal circumstances is always on. D5 light: Power indicator light, under normal circumstances is always on state. R24B lights: D1 light: Read-write light, will blink during the read-write process; D2 light: Fault light, it is off under normal condition when using M.2 hard disk, and it is always on under normal condition when using M.3 hard disk; D3 light: RESET light, under normal circumstances will only blink once in the power-on state; D4 light: REQCLK# light, under normal circumstances is always on; D5 light: 3.3v power indicator, which is always on when using M.2 hard disk, and off when using M.3 hard disk (always on after turning on the capacitor switch); D6 light: 12v power indicator, it is off when using M.2 hard disk, and always on when using M.3 hard disk.

• Widely Application: Compatible with M.2 NVMe 2230 2242 2260 2280 22110 SSD.
• Speed Bandwidth: Support PCIe 5.0 X4, Compatible with Gen3/Gen4/Gen5.
• High-frequency, low resistance, high-temperature resistant, anti-oxidation PCB board, no deformation of the color of yellow crystal translucent, not white, not black.
• D1 Light: Read-write light, will blink during the read-write process.
• D3 Light: RESET light, under normal circumstances will only blink once in the power-on state; D4 Light: REQCLK# light, under normal circumstances is always on.
