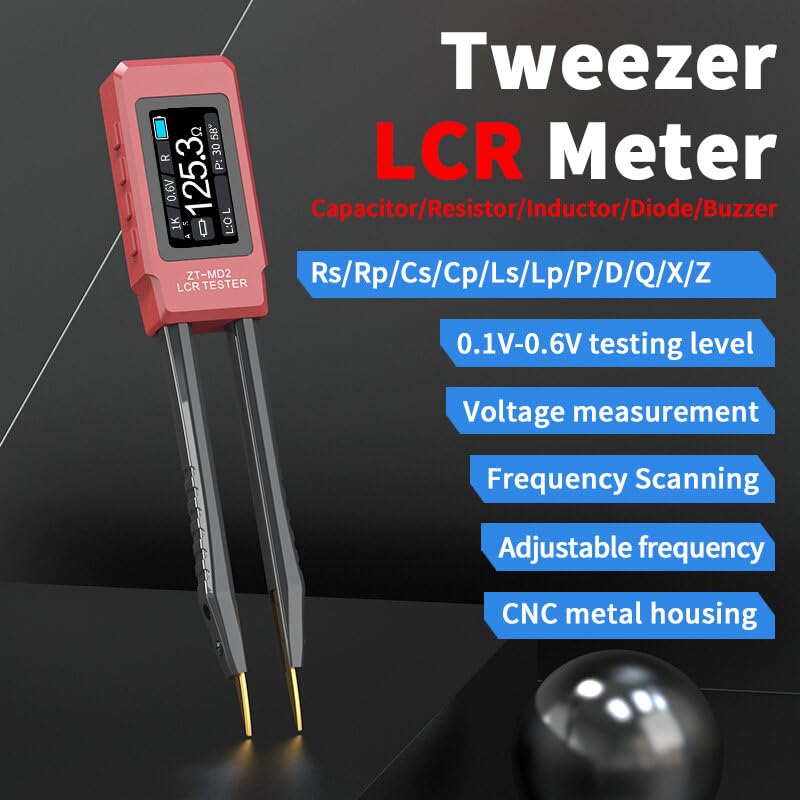

LCR Meter, Xiangtat ZT-MD2 10KHz LCR Meter Tweezer with 0.5% Accuracy, Digital Multimeter Tester with OLED Display, Tester for SMD, ESR, Resistor, Capacitor, Inductance, Voltage, Frequency, Diode

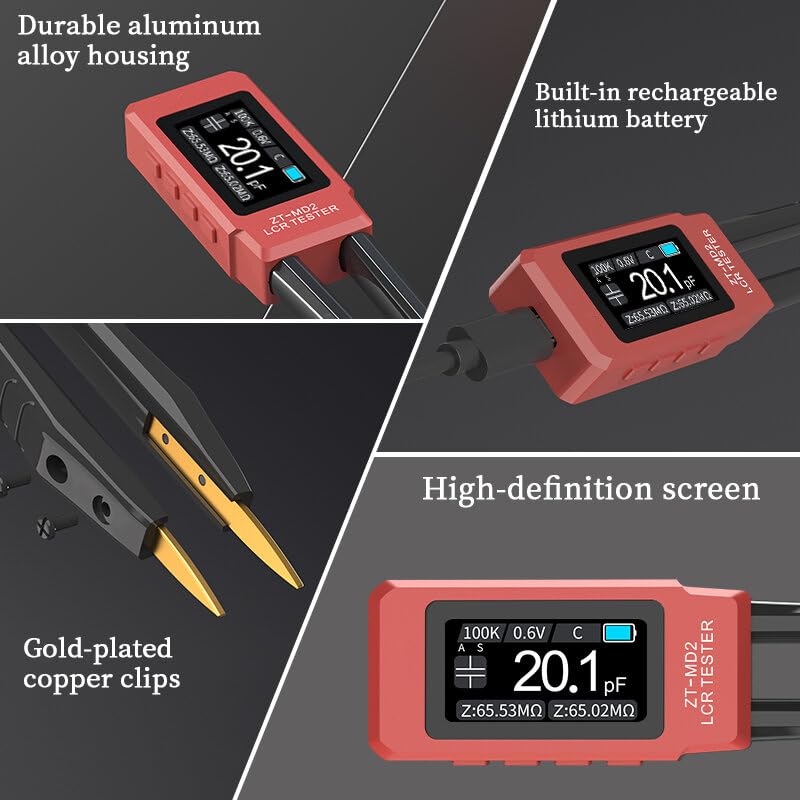

Specification: Resistance Measurement Range: 1MΩ~10MΩ, 1kΩ~1MΩ, 1Ω~1kΩ Capacitance Measurement Range: 1mF~22mF, 1μF~1mF, 1nF~1uF, 1pF~10nF Inductance Measurement Range: 1H~10H, 1mH~1H, 10uH~1mH, 1uH~10uH Frequency: 100Hz, 120Hz, 1kHz, 10kHz, 100kHz Voltage: 0.1V, 0.3V, 0.6V Display: OLED Features: 1.Wide Measurement Range: Accurately measures resistance, capacitance, and inductance across various ranges for diverse electronic components, enabling professional-grade analysis. 2.Adjustable Frequency Modes: Offers 100Hz to 100kHz frequency options, making it versatile for both high-frequency and low-frequency testing applications. 3.OLED Display: Integrated OLED screen delivers crisp and clear readings, ensuring precise data visualization even in low-light conditions. 4.CNC Metal Design: Constructed with CNC-machined metal housing for reliable handling and precise alignments during testing. 5.Portable Tweezer Design: Compact and ergonomic tweezers enable convenient one-hand operation, ideal for fine-point testing on small electronic components. Package Included: 1 x Tweezer LCR Meter

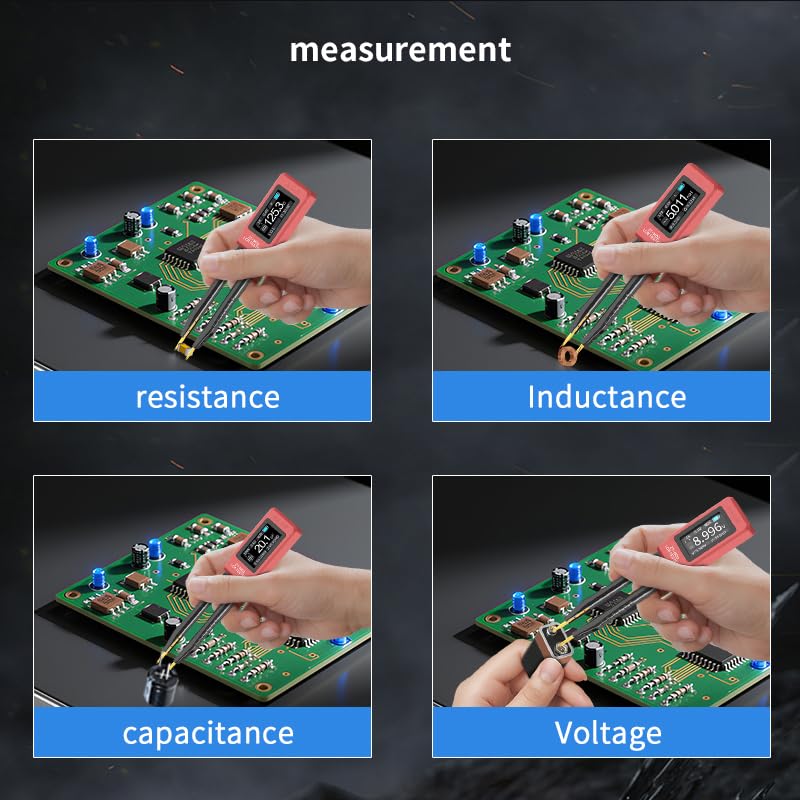

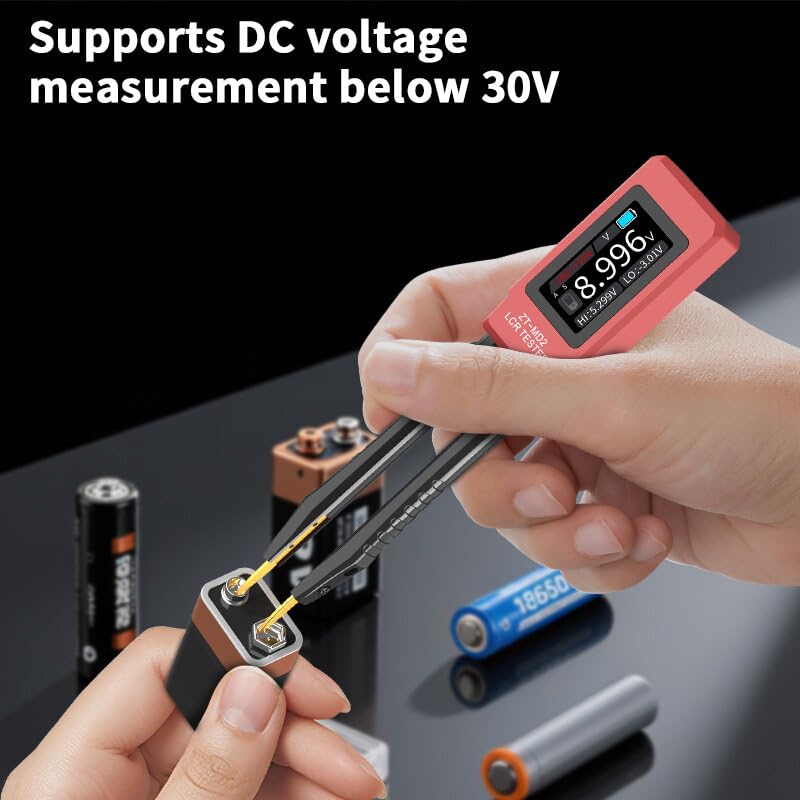

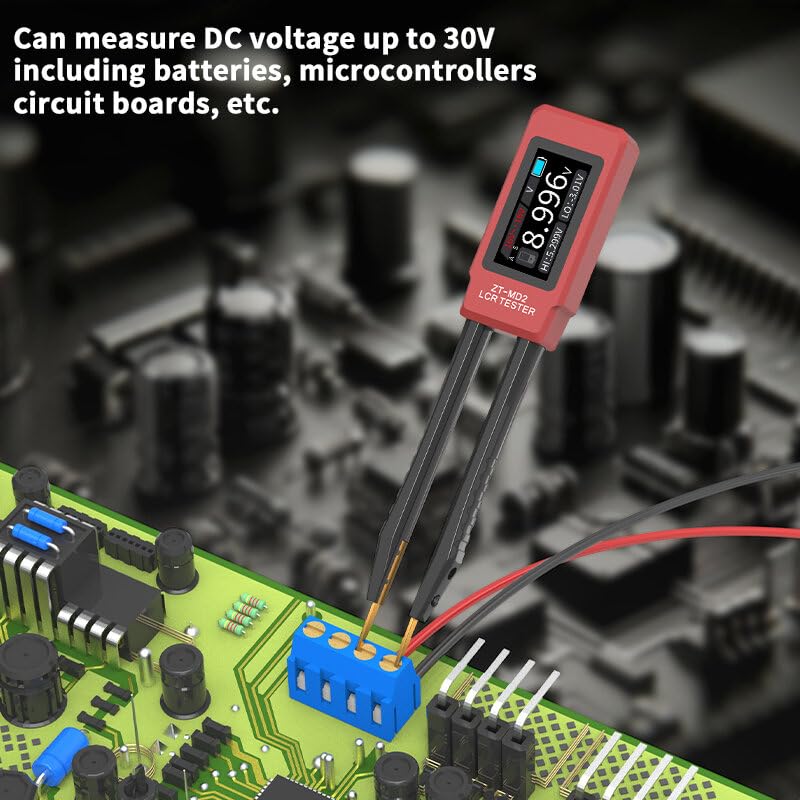

• Wide Range of Application. Xiangtat LCR meter is a tool for multi-functional electronic components tester analyzer, it is widely useful for tests of L (inductance), C (capacitance), R (resistance), D (diode), V (voltage) and F (frequency).
• Larger Measurement Range and Higher Precision. The measurement range includes test frequencies of 100 Hz, 1 kHz, and 10 kHz, along with test voltages of 0.3 V and 0.6 V. LCR Tester also covers a resistance range from 10 mΩ to 10 MΩ, a capacitance range from 1 pF to 20 mF, and an inductance range from 1 µH to 60 H.
• Tweezer-sized Design. LCR Meter Tweezer redefines portability with its handheld, tweezer-sized design. Equipped with a variety of testing functions, it enables seamless, on-the-go testing, freeing you from the constraints of traditional LCR.

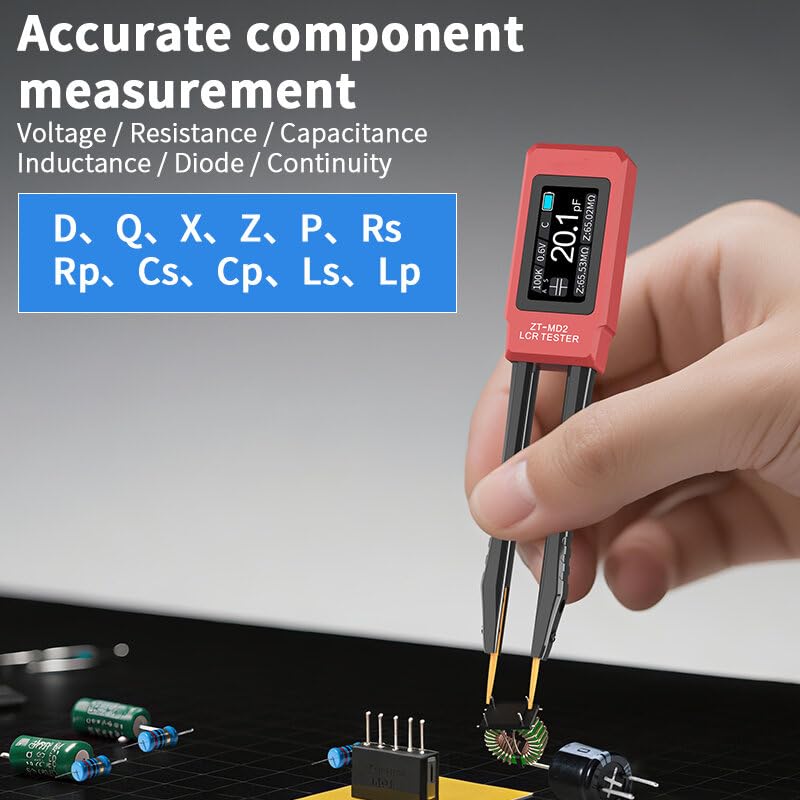

• Automatic Recognition. Designed meticulously to auto-detect and measure electronic component parameters, it offers unparalleled precision, streamlining your workflow.
• Data Storage and Export. The LCR tester can automatically save the test records. And you could connect the tester to your PC and transfer all the data to PC via EXCEL.
